5. Seaborn Part 1

1. Introduction

Seaborn is a Python data visualization library built on top of Matplotlib. It integrates well with Numpy Arrays and Pandas DataFrames and has built in support for statistics visualizations.

Seaborn vs. Matplotlib

Feature	Matplotlib	Seaborn
Level	Low-level (more control, more code)	High-level (less code, more automation)
Ease of Use	Requires more setup and manual styling	Easy, concise functions with polished defaults
Integration with Pandas	Good, but often needs manual setup	Excellent, designed for DataFrames
Plot Types	Wide variety, customizable	Focused on statistical plots and enhanced visuals
Default Style	Basic (needs customization for polish)	Beautiful, color-optimized themes out of the box
Best Use Cases	Custom, detailed visualizations	Exploratory Data Analysis (EDA), fast, clean visuals
Customization	Maximum control over every element	Customizable, but inherits from Matplotlib
Performance	Very efficient for all types of plots	Slightly higher overhead (due to additional processing)

Install Seaborn

Open Ubuntu:

# if you are not in your environment activate with
conda activate YOUR_ENVIRONMENT
conda install seaborn seaborn-base

Integration with Pandas DataFrames

Through keyword parameters Seaborn extracts title of variables in DataFrames and uses them as plot labels. It does not do this with Numpy Arrays. Note

import seaborn as sns
import pandas as pd

df = pd.DataFrame({
    "Concentration": [0.1, 0.2, 0.3, 0.4],
    "Absorbance": [0.15, 0.30, 0.45, 0.60]
})

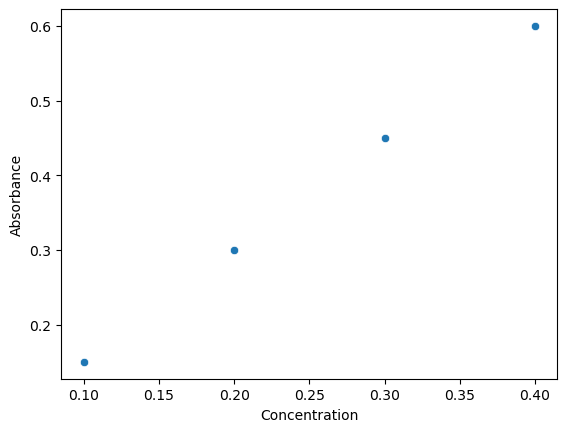

sns.scatterplot(x="Concentration", y="Absorbance", data=df)

<Axes: xlabel='Concentration', ylabel='Absorbance'>

If you want to plot two plots from a code cell you can integrate it with Numpy and use the plt.show() function. The only difference between the two plots is the order of the arguments that are passed as parameters, and since these are keyword and not positional, the order does not matter

import seaborn as sns
import pandas as pd
import matplotlib.pyplot as plt

# Sample DataFrame
df = pd.DataFrame({
    "Concentration": [0.1, 0.2, 0.3, 0.4],
    "Absorbance": [0.15, 0.30, 0.45, 0.60]
})

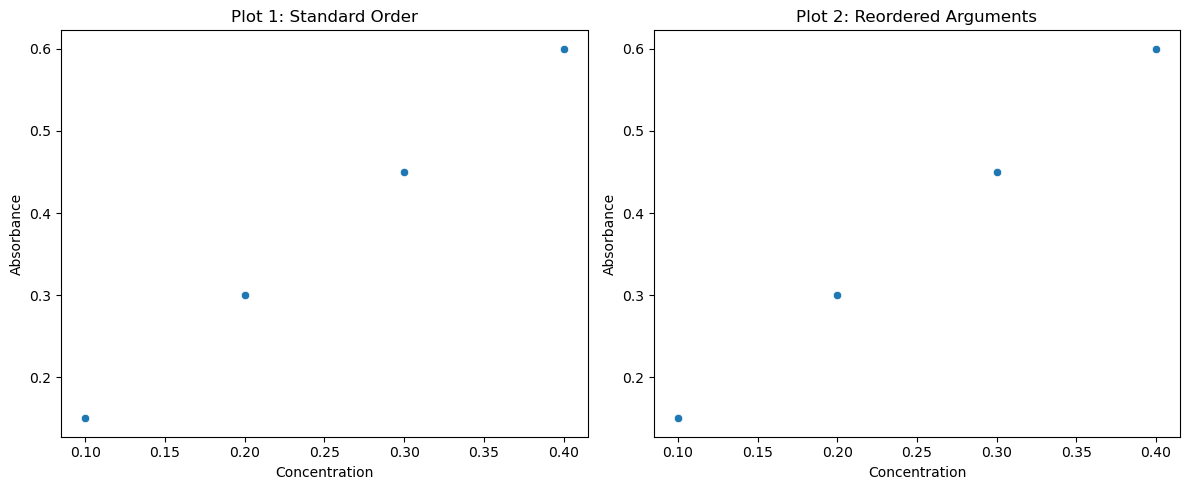

# Create side-by-side subplots
fig, axes = plt.subplots(1, 2, figsize=(12, 5))  # 1 row, 2 columns

# First plot (standard order)
sns.scatterplot(x="Concentration", y="Absorbance", data=df, ax=axes[0])
axes[0].set_title("Plot 1: Standard Order")

# Second plot (reordered keyword arguments)
sns.scatterplot(data=df, x="Concentration", y="Absorbance", ax=axes[1])
axes[1].set_title("Plot 2: Reordered Arguments")

# Adjust layout
plt.tight_layout()
plt.show()

Built-in Data Sets

Seaborn also comes with built-in data sets. These data sets are not downloaded when you install Seaborn but accessed through this github mwaskom/seaborn-data To get a list of the available datasets use the sns.get_dataset_names() function.

import seaborn as sns
print(sns.get_dataset_names())

['anagrams', 'anscombe', 'attention', 'brain_networks', 'car_crashes', 'diamonds', 'dots', 'dowjones', 'exercise', 'flights', 'fmri', 'geyser', 'glue', 'healthexp', 'iris', 'mpg', 'penguins', 'planets', 'seaice', 'taxis', 'tips', 'titanic']

To load a dataset from the seaborn-data github into a pandas dataframe use

df_name=sns.load_dataset(name)

The following command creates a dataframe called tips from the tips.csv file in the github

import seaborn as sns
tips = sns.load_dataset("tips")
print(tips.head())
print(type(tips))

   total_bill   tip     sex smoker  day    time  size
0       16.99  1.01  Female     No  Sun  Dinner     2
1       10.34  1.66    Male     No  Sun  Dinner     3
2       21.01  3.50    Male     No  Sun  Dinner     3
3       23.68  3.31    Male     No  Sun  Dinner     2
4       24.59  3.61  Female     No  Sun  Dinner     4
<class 'pandas.core.frame.DataFrame'>

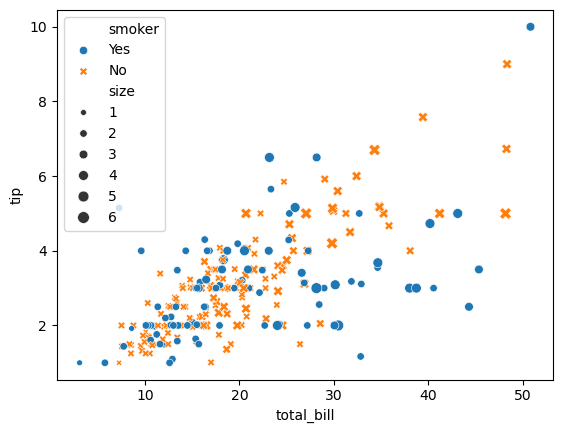

To plot the dataframe you simply choose the plot type and pass it the parameters

sns.scatterplot(
    data=tips,
    x="total_bill", y="tip",
    hue="smoker", style="smoker", size="size",
)

<Axes: xlabel='total_bill', ylabel='tip'>

2. Seaborn Objects

2.1 Major Classes

Class Object	Description
sns.FacetGrid	Creates a grid of plots for multivariate visualizations (e.g., small multiples).
sns.PairGrid	Similar to FacetGrid, but optimized for pairwise relationships between variables.
sns.JointGrid	Creates joint plots with marginal plots (e.g., scatter + histograms).
sns.axes_style	Manages plot aesthetics and themes (context, style, palette).
sns.color_palette	Manages and customizes color schemes.
sns.MovingAverage	Utility for smoothing data (less common).
sns.objects.Plot	Introduced in Seaborn v0.12+: A new object-oriented API for building plots.

2.2 General Functions

Function Type	Function Name	Description
Plotting (general)	sns.plotting_context()	Sets font sizes and spacing for different contexts (e.g., “notebook”).
Plotting (style)	sns.set_style()	Sets background, grid, and overall plot style.
Plotting (theme)	sns.set_theme()	Sets Seaborn’s default aesthetics in one call.
Color management	sns.set_palette()	Sets color palette globally.
Data loading	sns.load_dataset()	Loads example datasets from Seaborn’s GitHub repo.
Display options	sns.despine()	Removes axis spines for a cleaner look.
Utility	sns.palplot()	Visualizes color palettes.
Object plotting (new API)	sns.objects.Plot()	New plotting API introduced in Seaborn 0.12 (OOP approach).

2.3 Plotting Functions

Before diving into Seaborn Plot Functions lets look at the types of plots

Category	Purpose / What It Shows	Data Type	Common Applications
Relational	Shows relationships between variables (especially numeric).	Numeric vs. Numeric	Trends, correlations, comparisons over time or concentration, etc.
Distribution	Shows how data is distributed (e.g., shape, spread, outliers).	One or two Numeric variables	Understanding variability, skewness, normality, multimodal distributions.
Categorical	Compares numeric values across categories; explores group differences.	Categorical vs. Numeric	Comparing experiments, groups, or chemical compounds.
Regression	Shows relationships with fitted models (linear or nonlinear).	Numeric vs. Numeric	Model fitting (e.g., Beer’s Law), trends with confidence intervals.
Matrix/Grid	Visualizes entire datasets or relationships between many variables at once.	Multivariate (many variables)	Correlation matrices, similarity heatmaps, clustering analyses.
Multivariate	Combines multiple visualizations to explore multiple variables at the same time.	Numeric + Categorical (often mixed)	Detailed variable relationships, outlier detection, density visualization.

Plot Type	Seaborn Function	Description
Relational
Scatter Plot	sns.scatterplot()	Shows relationship between two numeric variables.
Line Plot	sns.lineplot()	Shows trends over a continuous variable (e.g., time).
Relational (multi-plot)	sns.relplot()	High-level interface for scatterplot or lineplot + facets.
Distribution

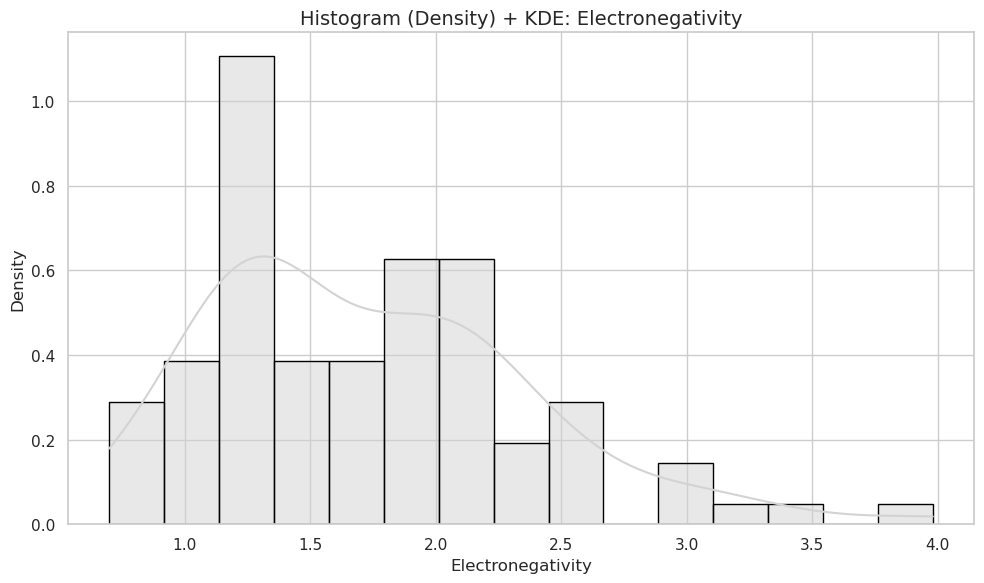

Histogram	sns.histplot()	Visualizes distribution of a variable.

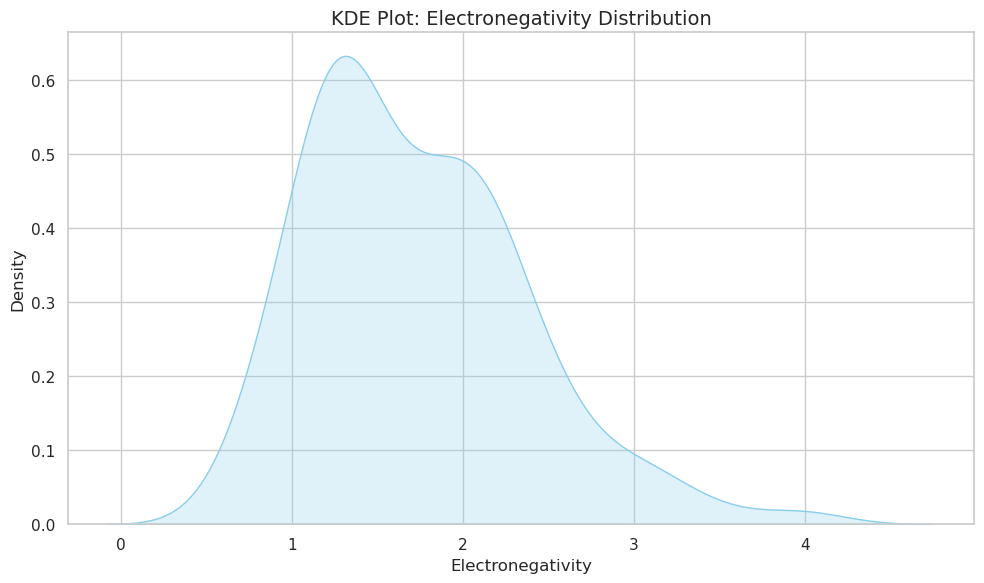

KDE Plot	sns.kdeplot()	Smooth density estimate of a variable.

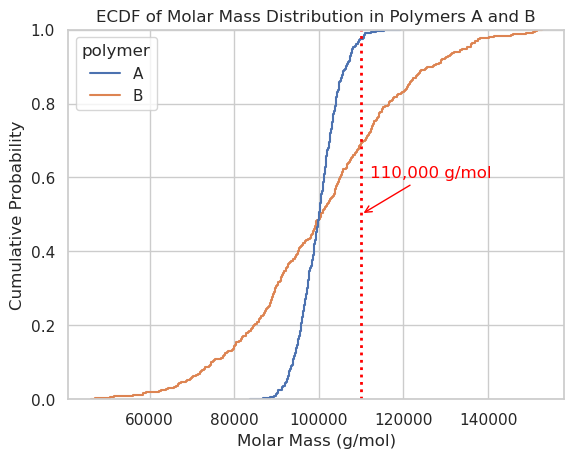

ECDF Plot	sns.ecdfplot()	Empirical cumulative distribution function.
Distribution Grid	sns.displot()	High-level histogram/KDE with facets.
Rug Plot	sns.rugplot()	Small ticks at data points to show distribution.
Categorical
Box Plot	sns.boxplot()	Shows distributions with quartiles and outliers.
Violin Plot	sns.violinplot()	Combines KDE with box plot.
Strip Plot	sns.stripplot()	Individual data points, possibly jittered.
Swarm Plot	sns.swarmplot()	Adjusts points to avoid overlap (non-overlapping stripplot).
Bar Plot	sns.barplot()	Aggregated values (e.g., mean) with error bars.
Count Plot	sns.countplot()	Counts occurrences in categories.
Categorical (multi-plot)	sns.catplot()	High-level interface for all categorical plots + facets.
Regression
Regression Plot	sns.regplot()	Scatterplot with regression line.
Logistic Regression	sns.lmplot()	High-level regplot + facets (linear model plot).
Matrix/Grid/Heatmap
Heatmap	sns.heatmap()	Color-coded matrix, e.g., correlations.
Clustermap	sns.clustermap()	Heatmap with clustering of rows/columns.
Pairwise Plots	sns.pairplot()	Matrix of scatterplots and histograms for multiple variables.
Multivariate/Joint
Joint Plot	sns.jointplot()	Combines scatterplot with histograms/KDEs (uses JointGrid).
New API (v0.12+)
Plot Object	sns.objects.Plot()	New object-oriented plotting system.

3. Seaborn Plots

First we will load the pubchem periodic table into a dataframe that we will call df, just to keep it short. We created this in module 02-6_ExternalDataStructures. If you look at the file PubChemElements_all.csv you will see that the second column is the symbols (index number 1) and the following code reads the file and sets the symbols as indices

df = pd.read_csv(periodictable_csv_datapath, index_col=1)

The file path we are using was created in module 02-6 and you can download the periodic table directly as a csv from PubChem: https://pubchem.ncbi.nlm.nih.gov/periodic-table/

import pandas as pd
import os
base_data_dir = os.path.expanduser("~/data")  # Parent directory
pubchem_data_dir = os.path.join(base_data_dir, "pubchem_data")  # Subdirectory for PubChem
os.makedirs(pubchem_data_dir, exist_ok=True)  # Ensure directories exist
periodictable_csv_datapath = os.path.join(pubchem_data_dir, "PubChemElements_all.csv")
df = pd.read_csv(periodictable_csv_datapath, index_col=1)
df.head()

	AtomicNumber	Name	AtomicMass	CPKHexColor	ElectronConfiguration	Electronegativity	AtomicRadius	IonizationEnergy	ElectronAffinity	OxidationStates	StandardState	MeltingPoint	BoilingPoint	Density	GroupBlock	YearDiscovered
Symbol
H	1	Hydrogen	1.008000	FFFFFF	1s1	2.20	120.0	13.598	0.754	+1, -1	Gas	13.81	20.28	0.000090	Nonmetal	1766
He	2	Helium	4.002600	D9FFFF	1s2	NaN	140.0	24.587	NaN	0	Gas	0.95	4.22	0.000179	Noble gas	1868
Li	3	Lithium	7.000000	CC80FF	[He]2s1	0.98	182.0	5.392	0.618	+1	Solid	453.65	1615.00	0.534000	Alkali metal	1817
Be	4	Beryllium	9.012183	C2FF00	[He]2s2	1.57	153.0	9.323	NaN	+2	Solid	1560.00	2744.00	1.850000	Alkaline earth metal	1798
B	5	Boron	10.810000	FFB5B5	[He]2s2 2p1	2.04	192.0	8.298	0.277	+3	Solid	2348.00	4273.00	2.370000	Metalloid	1808

3.1 Relational Plots

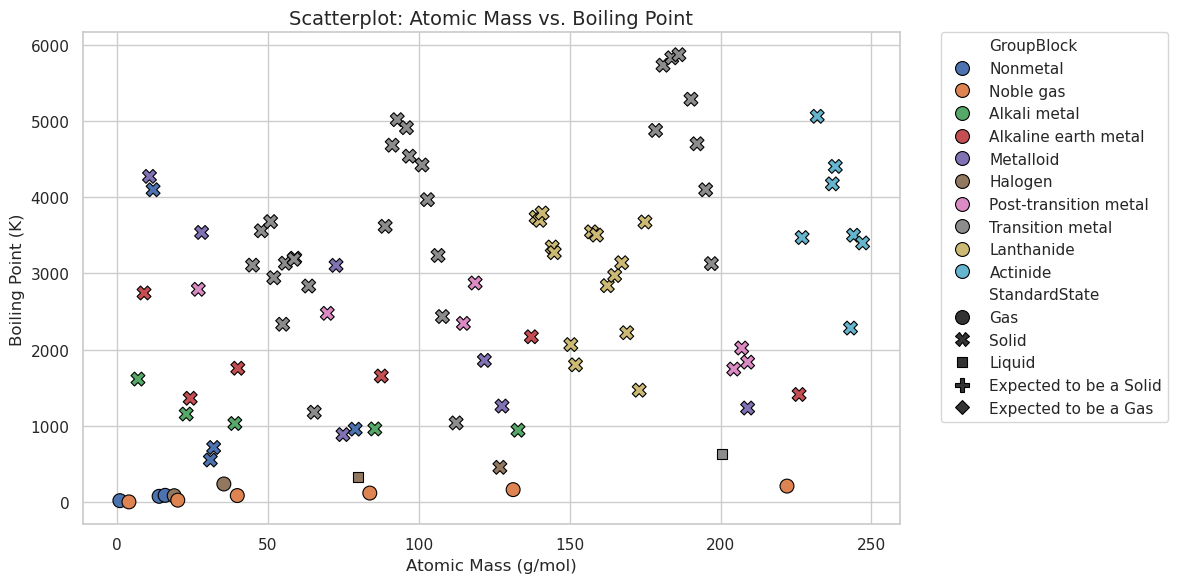

Scatterplot: sns.scatterplot()

First run the following code and see the type of data in the dataframe

print(df.columns)
print(df["GroupBlock"].unique())
print(df["StandardState"].unique())

Index(['AtomicNumber', 'Name', 'AtomicMass', 'CPKHexColor',
       'ElectronConfiguration', 'Electronegativity', 'AtomicRadius',
       'IonizationEnergy', 'ElectronAffinity', 'OxidationStates',
       'StandardState', 'MeltingPoint', 'BoilingPoint', 'Density',
       'GroupBlock', 'YearDiscovered'],
      dtype='object')
['Nonmetal' 'Noble gas' 'Alkali metal' 'Alkaline earth metal' 'Metalloid'
 'Halogen' 'Post-transition metal' 'Transition metal' 'Lanthanide'
 'Actinide']
['Gas' 'Solid' 'Liquid' 'Expected to be a Solid' 'Expected to be a Gas']

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Load the DataFrame (assuming index_col=0 is used for symbols)
#df = pd.read_csv("pubchem_periodic_table.csv", index_col=0)

# Set Seaborn style
sns.set(style="whitegrid")

# Create scatterplot
plt.figure(figsize=(12, 6))
scatter = sns.scatterplot(
    data=df,
    x="AtomicMass",           # Column from DataFrame for X-axis
    y="BoilingPoint",         # Column from DataFrame for Y-axis
    hue="GroupBlock",         # Column for color-coding (legend)
    style="StandardState",    # Column for marker style (legend)
    s=100,                    # Marker size
    edgecolor="black"         # Border color around markers
)

plt.title("Scatterplot: Atomic Mass vs. Boiling Point", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Boiling Point (K)")
plt.legend(bbox_to_anchor=(1.05, 1), loc=2, borderaxespad=0.)
plt.tight_layout()
plt.show()

OK, what happened? In the following code we defined what we plotted in the scatter plot and seaborn set up the plot, legend and all!

scatter = sns.scatterplot(
    data=df,
    x="AtomicMass",           # Column from DataFrame for X-axis
    y="BoilingPoint",         # Column from DataFrame for Y-axis
    hue="GroupBlock",         # Column for color-coding (legend)
    style="StandardState",    # Column for marker style (legend)
    s=100,                    # Marker size
    edgecolor="black"         # Border color around markers
)

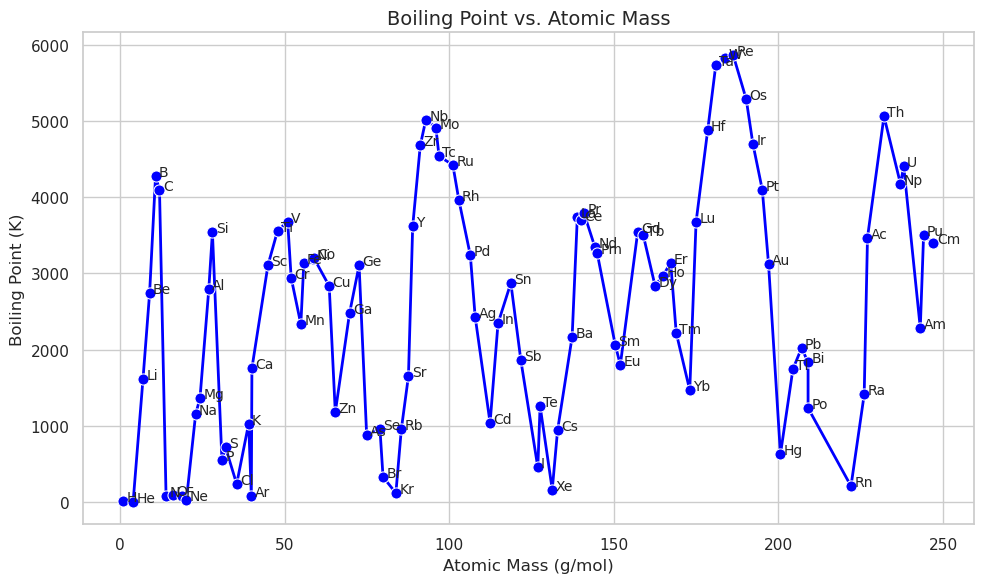

Line Plot: sns.lineplot()

A line plot connects the points if you want to do a best fit you need to run a regression type plot. Here we are using annotations instead of a legend

plt.figure(figsize=(10, 6))
sns.lineplot(
    data=df,
    x="AtomicMass",
    y="BoilingPoint",
    marker="o",
    color="blue",
    linewidth=2,
    markersize=8
)

# Annotate each point with the element symbol
for symbol, row in df.iterrows():
    plt.text(row["AtomicMass"] + 1, row["BoilingPoint"], symbol, fontsize=10)

plt.title("Boiling Point vs. Atomic Mass", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Boiling Point (K)")
plt.tight_layout()
plt.show()

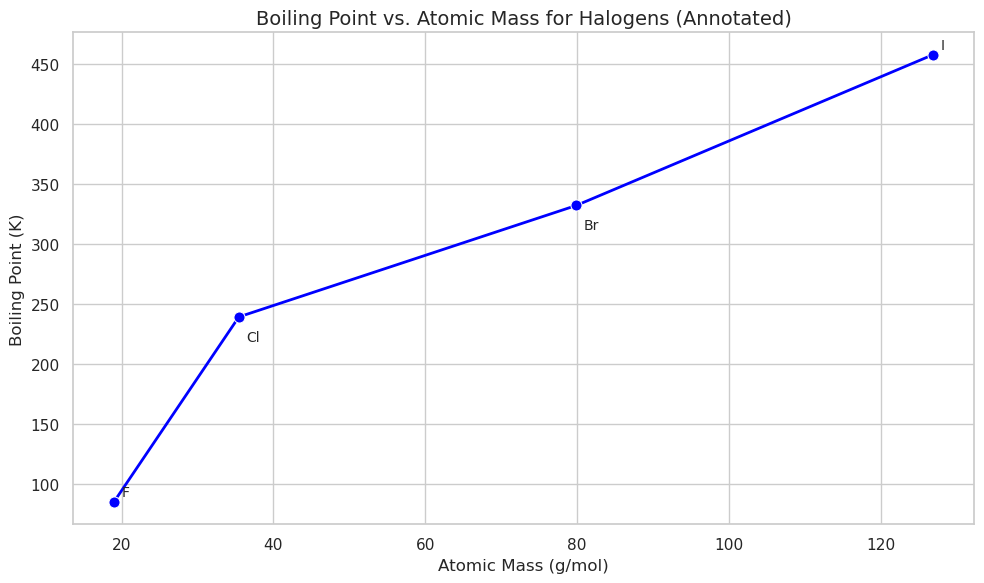

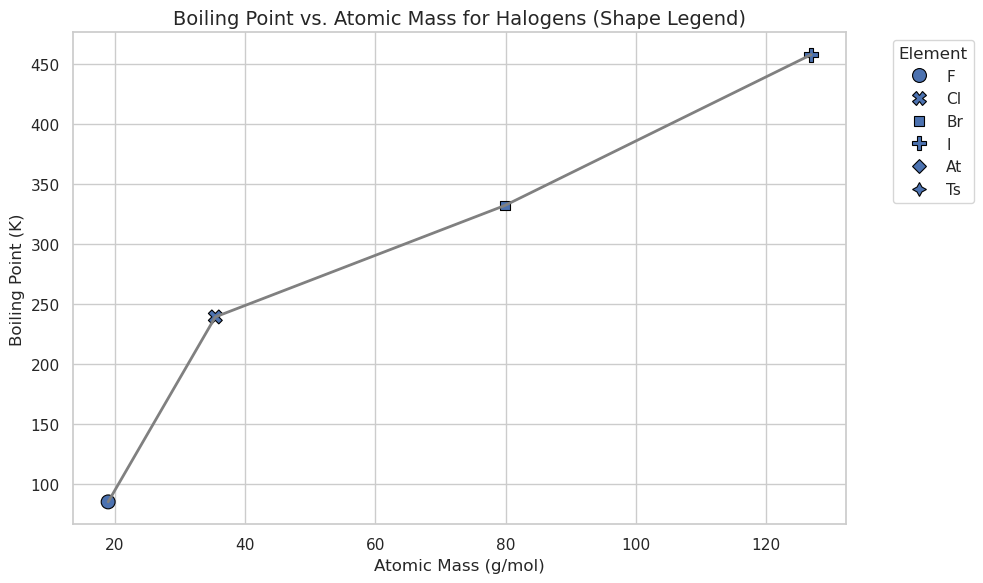

Now filter for halogens Note the annotations for Cl and Br are covered by the line. This is controlled by the following line of code:

plt.text(row["AtomicMass"] + 1, row["BoilingPoint"], symbol)

We can make custom offsets with a dictionary

# Custom offsets: symbol → (x_offset, y_offset)
offsets = {
    'F': (1, 5),
    'Cl': (1, -20),   # Lower Cl
    'Br': (1, -20),   # Lower Br
    'I': (1, 5),
    'At': (1, 5),
    'Ts': (1, 5)
}

# Annotate with controlled placement
for symbol, row in halogens_df.iterrows():
    x_offset, y_offset = offsets.get(symbol, (1, 5))  # Default offset if missing
    plt.text(
        row["AtomicMass"] + x_offset,
        row["BoilingPoint"] + y_offset,
        symbol,
        fontsize=10
    )

# Filter for Halogens
halogens_df = df[df["GroupBlock"] == "Halogen"]
plt.figure(figsize=(10, 6))
sns.lineplot(
    data=halogens_df,
    x="AtomicMass",
    y="BoilingPoint",
    marker="o",
    color="blue",
    linewidth=2,
    markersize=8
)

# Custom offsets: symbol → (x_offset, y_offset)
offsets = {
    'F': (1, 5),
    'Cl': (1, -20),   # Lower Cl
    'Br': (1, -20),   # Lower Br
    'I': (1, 5),
    'At': (1, 5),
    'Ts': (1, 5)
}

# Annotate with controlled placement
for symbol, row in halogens_df.iterrows():
    x_offset, y_offset = offsets.get(symbol, (1, 5))  # Default offset if missing
    plt.text(
        row["AtomicMass"] + x_offset,
        row["BoilingPoint"] + y_offset,
        symbol,
        fontsize=10
    )

plt.title("Boiling Point vs. Atomic Mass for Halogens (Annotated)", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Boiling Point (K)")
plt.tight_layout()
plt.show()

# Plot the line connecting all halogens (gray line)
plt.figure(figsize=(10, 6))
sns.lineplot(
    data=halogens_df,
    x="AtomicMass",
    y="BoilingPoint",
    color="gray",      # Single line color
    linewidth=2,
    marker=None        # No markers in lineplot here
)

# Overlay scatter points with unique shapes for each halogen
sns.scatterplot(
    data=halogens_df,
    x="AtomicMass",
    y="BoilingPoint",
    style=halogens_df.index,   # Different shape for each element
    s=100,
    edgecolor="black",
    legend=True
)

plt.title("Boiling Point vs. Atomic Mass for Halogens (Shape Legend)", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Boiling Point (K)")
plt.legend(title="Element", bbox_to_anchor=(1.05, 1), loc=2)
plt.tight_layout()
plt.show()

Relation Plots + Faceting: sns.realplot()

• Faceting is splitting the data set into subsets and creating subplots for the subsets, all within one figure

• relplot() is a figure level function that allows you to make multiple scatter or line plots

import seaborn as sns
import matplotlib.pyplot as plt

# Set style
sns.set(style="whitegrid")

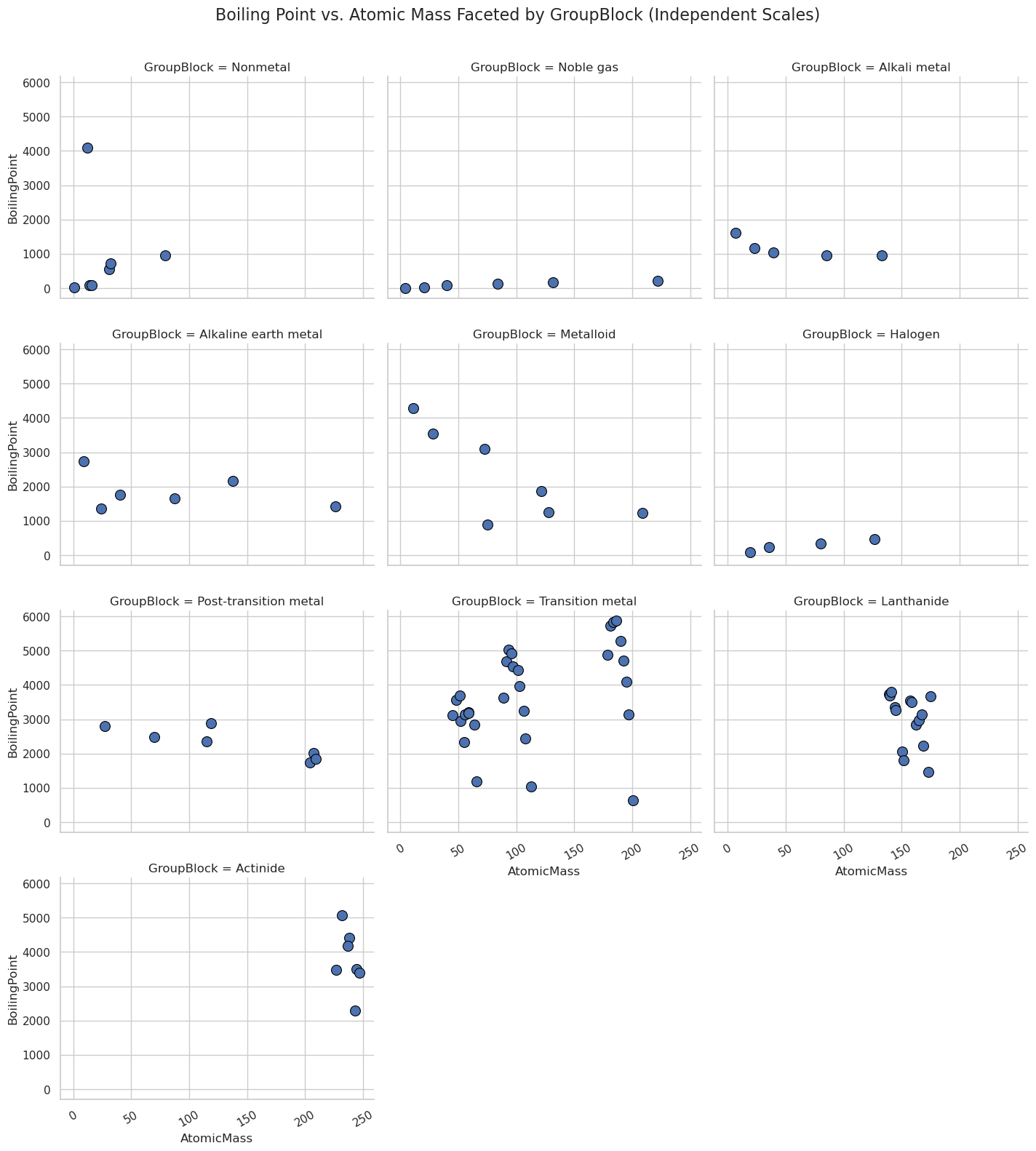

# relplot: Boiling Point vs. Atomic Mass, faceted by GroupBlock with individual scales
g = sns.relplot(
    data=df,
    x="AtomicMass",
    y="BoilingPoint",
    kind="scatter",
    col="GroupBlock",
    col_wrap=3,
    height=4,
    aspect=1.2,
    s=100,
    edgecolor="black",
    #facet_kws={'sharex': False, 'sharey': False}  # Independent axes
)

# Rotate x-axis labels safely
for ax in g.axes.flat:
    ax.tick_params(axis='x', rotation=30)

# Set common title
g.fig.subplots_adjust(top=0.92)
g.fig.suptitle("Boiling Point vs. Atomic Mass Faceted by GroupBlock (Independent Scales)", fontsize=16)
plt.show()

import seaborn as sns
import matplotlib.pyplot as plt

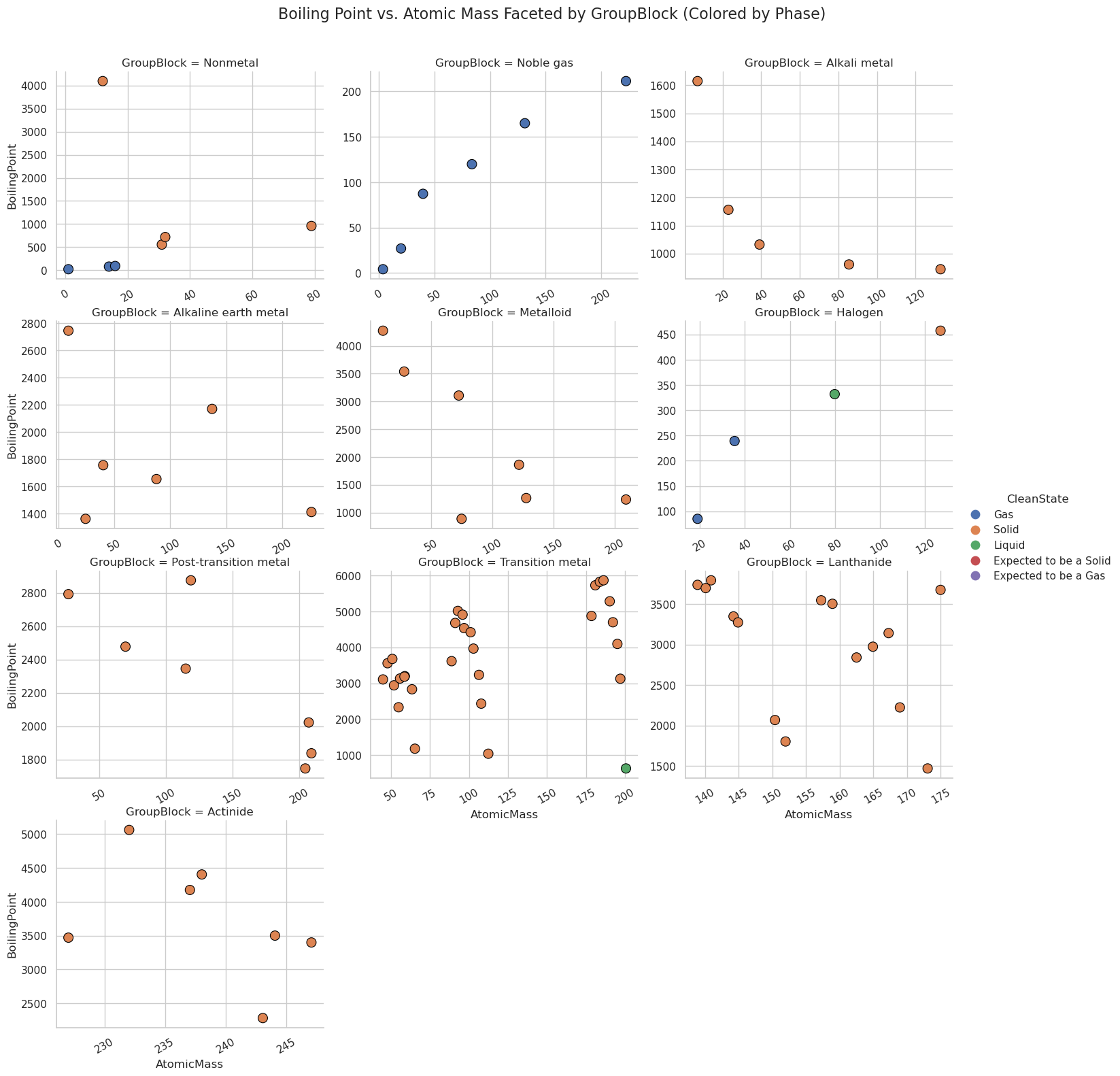

# Clean the StandardState values
df["CleanState"] = df["StandardState"].replace({
    "expected solid": "Solid",
    "expected gas": "Gas",
    "expected liquid": "Liquid"
})

# Set style
sns.set(style="whitegrid")

# relplot with hue by CleanState (phase)
g = sns.relplot(
    data=df,
    x="AtomicMass",
    y="BoilingPoint",
    kind="scatter",
    hue="CleanState",             # Color by cleaned phase
    col="GroupBlock",
    col_wrap=3,
    height=4,
    aspect=1.2,
    s=100,
    edgecolor="black",
    facet_kws={'sharex': False, 'sharey': False}  # Independent scales
)

# Rotate x-axis labels
for ax in g.axes.flat:
    ax.tick_params(axis='x', rotation=30)

# Set title
g.fig.subplots_adjust(top=0.92)
g.fig.suptitle("Boiling Point vs. Atomic Mass Faceted by GroupBlock (Colored by Phase)", fontsize=16)
plt.show()

3.2 Distribution Functions

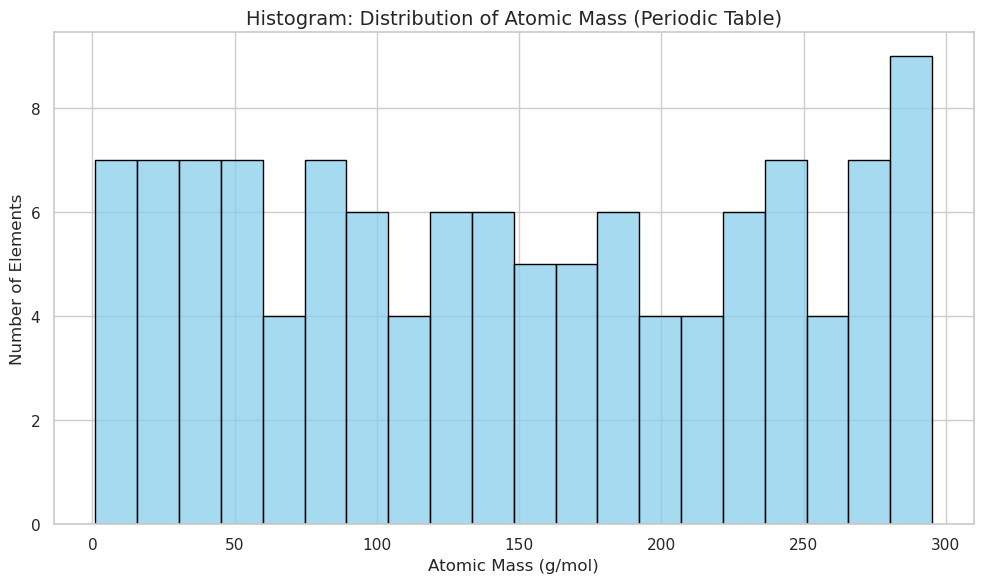

Histograms: sns.histplot()

Show distribution of a single variable by dividing it into bins and showing how many times it appears in a bin.

import seaborn as sns
import matplotlib.pyplot as plt

sns.set(style="whitegrid")

plt.figure(figsize=(10, 6))
sns.histplot(data=df, x="AtomicMass", bins=20, kde=False, color="skyblue", edgecolor="black")

plt.title("Histogram: Distribution of Atomic Mass (Periodic Table)", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Number of Elements")
plt.tight_layout()
plt.show()

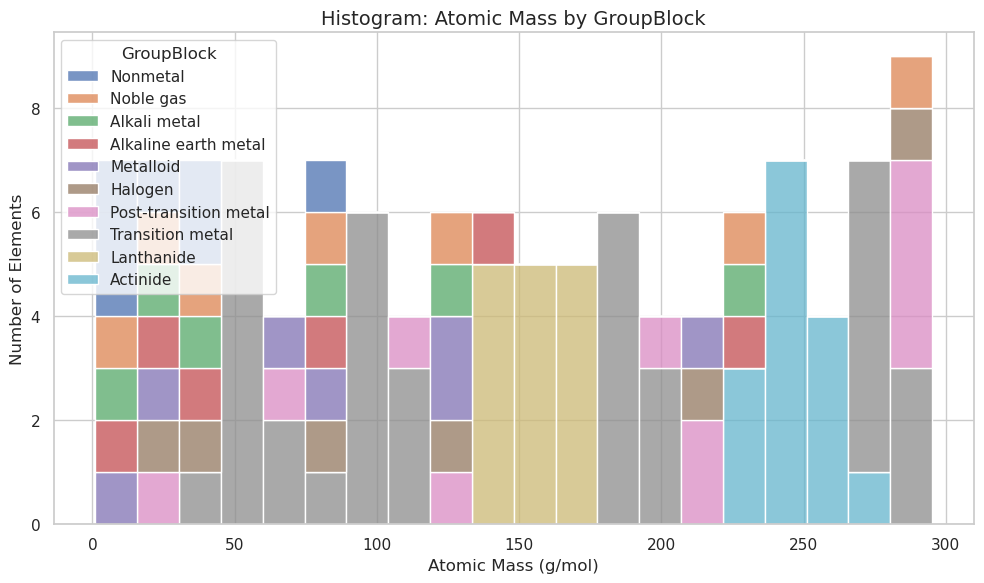

plt.figure(figsize=(10, 6))
sns.histplot(data=df, x="AtomicMass", hue="GroupBlock", multiple="stack", bins=20)

plt.title("Histogram: Atomic Mass by GroupBlock", fontsize=14)
plt.xlabel("Atomic Mass (g/mol)")
plt.ylabel("Number of Elements")
plt.tight_layout()
plt.show()

Now lets make

import seaborn as sns
import matplotlib.pyplot as plt

sns.set(style="whitegrid")

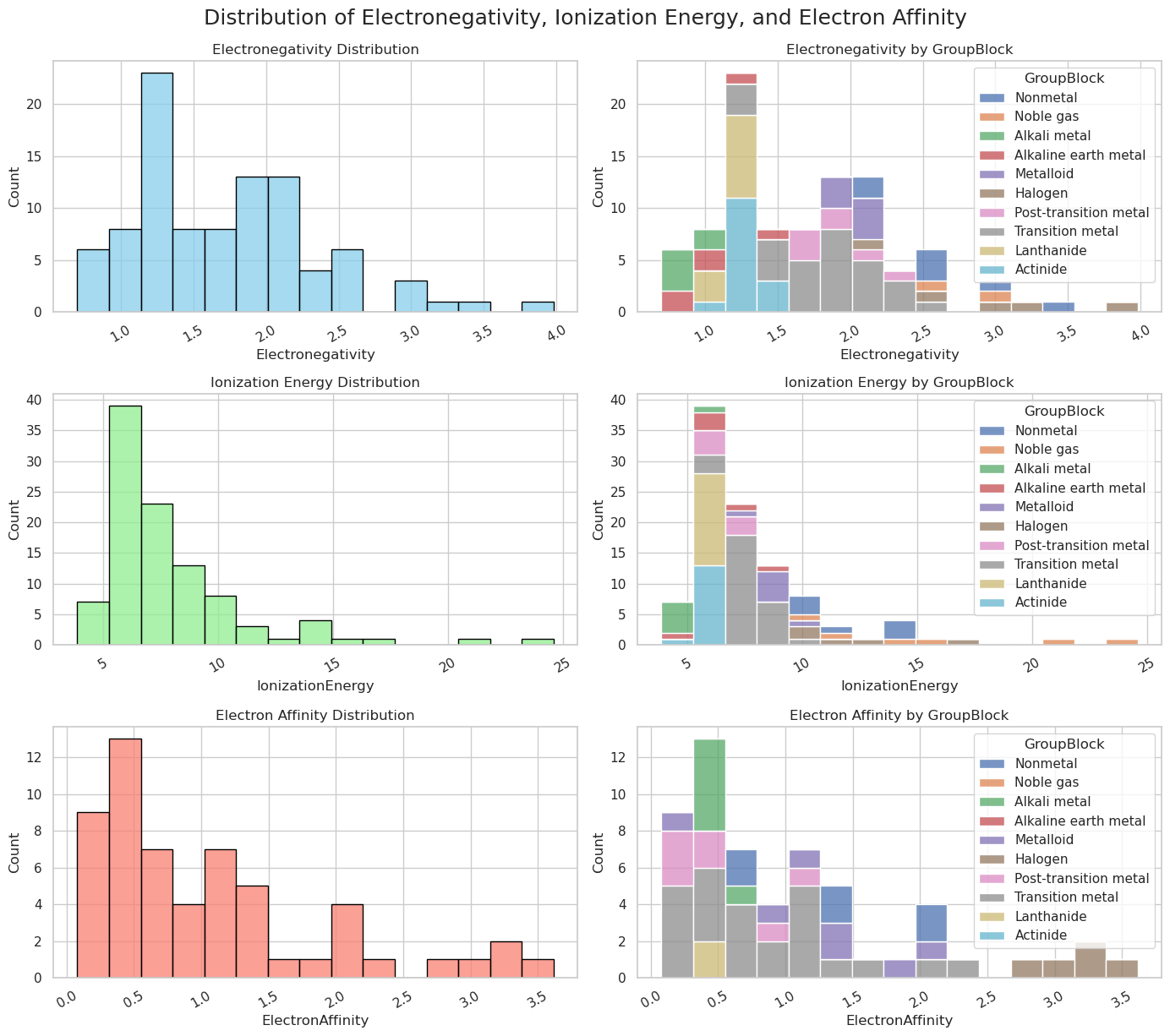

# Create 3 rows x 2 columns grid
fig, axes = plt.subplots(3, 2, figsize=(14, 12))

# --- Row 1: Electronegativity ---
sns.histplot(data=df, x="Electronegativity", bins=15, kde=False,
             ax=axes[0, 0], color="skyblue", edgecolor="black")
axes[0, 0].set_title("Electronegativity Distribution")
axes[0, 0].set_ylabel("Count")

sns.histplot(data=df, x="Electronegativity", hue="GroupBlock", bins=15, multiple="stack",
             ax=axes[0, 1])
axes[0, 1].set_title("Electronegativity by GroupBlock")
axes[0, 1].set_ylabel("Count")

# --- Row 2: Ionization Energy ---
sns.histplot(data=df, x="IonizationEnergy", bins=15, kde=False,
             ax=axes[1, 0], color="lightgreen", edgecolor="black")
axes[1, 0].set_title("Ionization Energy Distribution")
axes[1, 0].set_ylabel("Count")

sns.histplot(data=df, x="IonizationEnergy", hue="GroupBlock", bins=15, multiple="stack",
             ax=axes[1, 1])
axes[1, 1].set_title("Ionization Energy by GroupBlock")
axes[1, 1].set_ylabel("Count")

# --- Row 3: Electron Affinity ---
sns.histplot(data=df, x="ElectronAffinity", bins=15, kde=False,
             ax=axes[2, 0], color="salmon", edgecolor="black")
axes[2, 0].set_title("Electron Affinity Distribution")
axes[2, 0].set_ylabel("Count")

sns.histplot(data=df, x="ElectronAffinity", hue="GroupBlock", bins=15, multiple="stack",
             ax=axes[2, 1])
axes[2, 1].set_title("Electron Affinity by GroupBlock")
axes[2, 1].set_ylabel("Count")

# Rotate x-axis labels for clarity
for ax_row in axes:
    for ax in ax_row:
        ax.tick_params(axis='x', rotation=30)

# Adjust layout and common title
fig.tight_layout()
fig.suptitle("Distribution of Electronegativity, Ionization Energy, and Electron Affinity", fontsize=18, y=1.02)
plt.show()

Subplots vs. Faceted Plots

Subplots (Matplotlib’s plt.subplot())

• Each subplot is independent

• Mixed subplot types

Facets (Seaborn’s FacetGrid)

• used in relplot(), catplot()..

• you give Seaborn variable to facet (roe= , col= , hue=)

• Faceting is data driven

• Limited to one plot type at a time across all facets

Feature	Subplots (plt.subplots)	Facets (relplot, FacetGrid)
Control	Full manual control (plot type, data)	Auto-splits data by variable, same plot type
Data Management	You manage what data goes in each plot	Seaborn handles data splitting and plotting
Flexibility	Any combination of plots and data	One plot type, applied to data subsets
Use Case	Mixed plots, advanced layouts	Comparing same plot across groups (facets)

KDE (Kernel Density Estimate)

• Smoothed version of a histogram

• best for continuous not discrete data

import seaborn as sns
import matplotlib.pyplot as plt

sns.set(style="whitegrid")

plt.figure(figsize=(10, 6))
sns.kdeplot(data=df, x="Electronegativity", fill=True, color="skyblue")

plt.title("KDE Plot: Electronegativity Distribution", fontsize=14)
plt.xlabel("Electronegativity")
plt.ylabel("Density")
plt.tight_layout()
plt.show()

plt.figure(figsize=(10, 6))
sns.histplot(data=df, x="Electronegativity", bins=15, kde=True, stat="density", color="lightgray", edgecolor="black")

plt.title("Histogram (Density) + KDE: Electronegativity", fontsize=14)
plt.xlabel("Electronegativity")
plt.ylabel("Density")
plt.tight_layout()
plt.show()

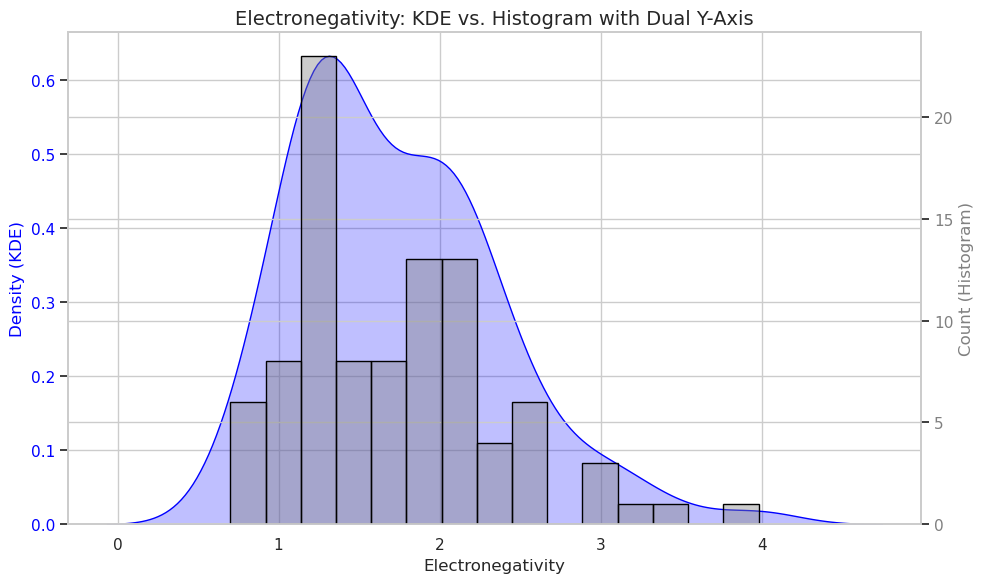

KDE and histogram with dual scales

import seaborn as sns
import matplotlib.pyplot as plt

sns.set(style="whitegrid")

# Create figure and primary axis (left)
fig, ax1 = plt.subplots(figsize=(10, 6))

# Plot KDE on ax1 (left Y-axis)
sns.kdeplot(data=df, x="Electronegativity", ax=ax1, color="blue", fill=True)
ax1.set_ylabel("Density (KDE)", color="blue")
ax1.tick_params(axis='y', labelcolor="blue")

# Create secondary axis (right)
ax2 = ax1.twinx()

# Plot histogram on ax2 (right Y-axis) with raw counts
sns.histplot(data=df, x="Electronegativity", bins=15, ax=ax2, color="gray", edgecolor="black", alpha=0.4)
ax2.set_ylabel("Count (Histogram)", color="gray")
ax2.tick_params(axis='y', labelcolor="gray")

# Titles and labels
plt.title("Electronegativity: KDE vs. Histogram with Dual Y-Axis", fontsize=14)
ax1.set_xlabel("Electronegativity")
plt.tight_layout()
plt.show()

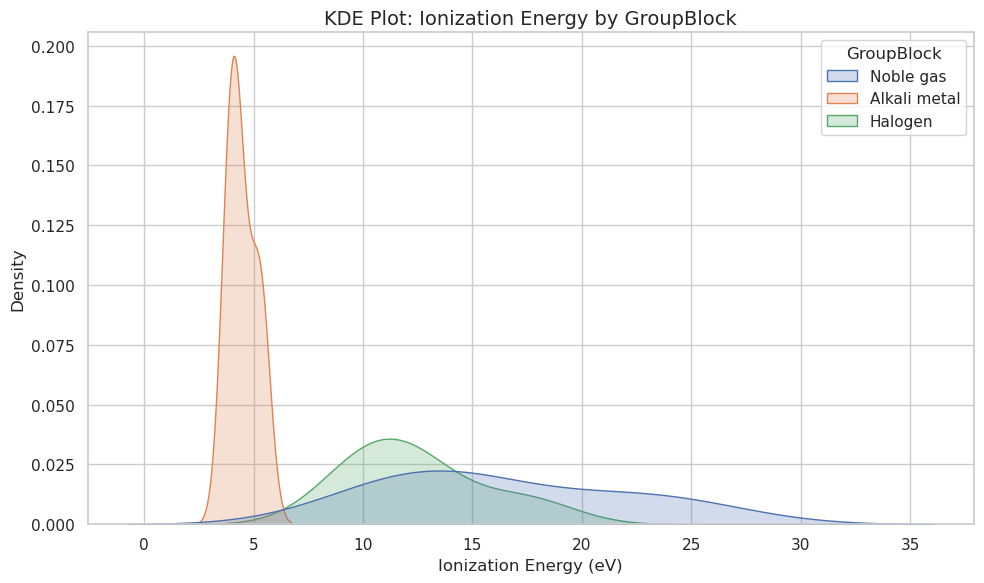

# Filter data to key GroupBlocks
groups = ["Alkali metal", "Halogen", "Noble gas"]
filtered_df = df[df["GroupBlock"].isin(groups)]

plt.figure(figsize=(10, 6))
sns.kdeplot(data=filtered_df, x="IonizationEnergy", hue="GroupBlock", fill=True)

plt.title("KDE Plot: Ionization Energy by GroupBlock", fontsize=14)
plt.xlabel("Ionization Energy (eV)")
plt.ylabel("Density")
plt.tight_layout()
plt.show()

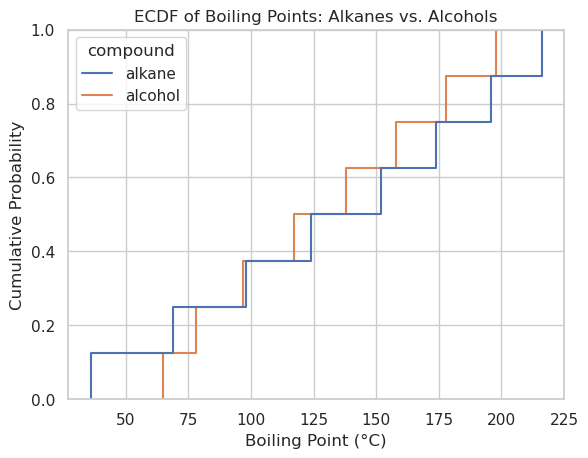

ECDF (Estimated Cumulative Distribution Function)

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

# Simulated data
data = {
    'compound': ['alkane'] * 8 + ['alcohol'] * 8,
    'boiling_point': [36, 69, 98, 124, 152, 174, 196, 216, 65, 78, 97, 117, 138, 158, 178, 198]
}
df = pd.DataFrame(data)

# ECDF plot
sns.ecdfplot(data=df, x='boiling_point', hue='compound')
plt.xlabel("Boiling Point (°C)")
plt.ylabel("Cumulative Probability")
plt.title("ECDF of Boiling Points: Alkanes vs. Alcohols")
plt.grid(True)
plt.show()
df

	compound	boiling_point
0	alkane	36
1	alkane	69
2	alkane	98
3	alkane	124
4	alkane	152
5	alkane	174
6	alkane	196
7	alkane	216
8	alcohol	65
9	alcohol	78
10	alcohol	97
11	alcohol	117
12	alcohol	138
13	alcohol	158
14	alcohol	178
15	alcohol	198

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Simulate molar mass data (g/mol)
np.random.seed(42)

# Polymer A: Narrow distribution, centered at 100,000 g/mol
poly_a = np.random.normal(loc=100_000, scale=5_000, size=500)

# Polymer B: Broad distribution, centered at 100,000 g/mol
poly_b = np.random.normal(loc=100_000, scale=20_000, size=500)

# Combine into DataFrame
df = pd.DataFrame({
    'molar_mass': np.concatenate([poly_a, poly_b]),
    'polymer': ['A'] * 500 + ['B'] * 500
})

# Optional: Clean up any negative values (can happen with normal distribution)
df = df[df['molar_mass'] > 0]

# ECDF plot
sns.ecdfplot(data=df, x='molar_mass', hue='polymer')
plt.axvline(x=110_000, color='red', linestyle='dotted', linewidth=2, label='110,000 g/mol')
plt.xlabel("Molar Mass (g/mol)")
plt.annotate("110,000 g/mol",
             xy=(110_000, 0.5),
             xytext=(112_000, 0.6),
             arrowprops=dict(arrowstyle="->", color='red'),
             color='red')

plt.ylabel("Cumulative Probability")
plt.title("ECDF of Molar Mass Distribution in Polymers A and B")

plt.grid(True)
plt.show()

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Seed for reproducibility
np.random.seed(0)

# Simulate pKa values
strong_acids = np.random.normal(loc=0, scale=1, size=100)     # Strong acids: pKa < 1
weak_acids = np.random.normal(loc=5, scale=2, size=100)       # Weak acids: pKa ~ 3–9

# Combine into DataFrame
df = pd.DataFrame({
    'pKa': np.concatenate([strong_acids, weak_acids]),
    'acid_type': ['Strong'] * len(strong_acids) + ['Weak'] * len(weak_acids)
})

# Filter out any unrealistic pKa values
df = df[(df['pKa'] > -5) & (df['pKa'] < 15)]

# Plot ECDF
sns.ecdfplot(data=df, x='pKa', hue='acid_type')

# Add physiological pH reference line
plt.axvline(x=7.4, color='red', linestyle='dotted', linewidth=2, label='Physiological pH (7.4)')

# Annotation
plt.annotate("Physiological pH = 7.4",
             xy=(7.4, 0.5),
             xytext=(8.5, 0.6),
             arrowprops=dict(arrowstyle="->", color='red'),
             color='red')

# Labels and legend
plt.xlabel("pKa")
plt.ylabel("Cumulative Probability")
plt.title("ECDF of pKa Values: Strong vs. Weak Acids")
plt.legend(title='Acid Type')
plt.grid(True)
plt.show()

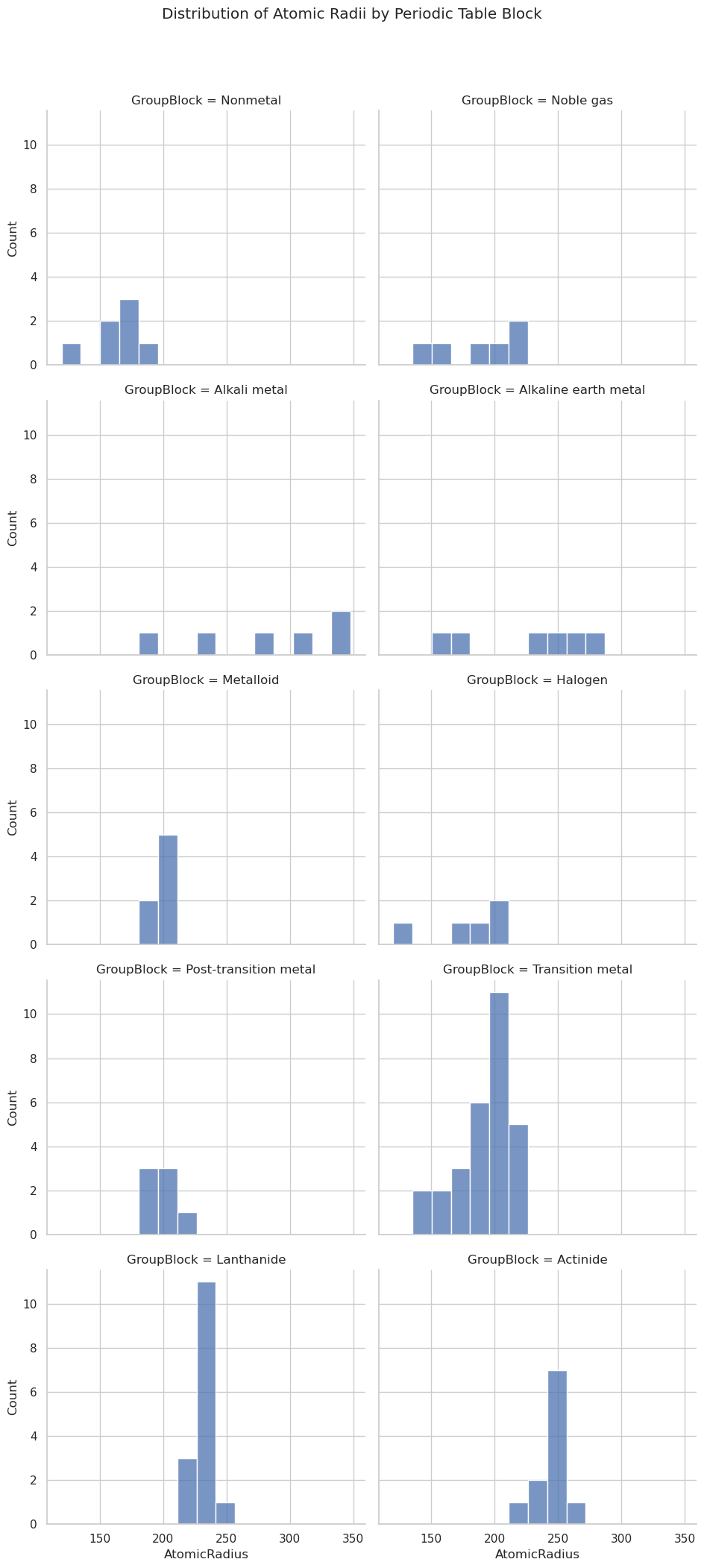

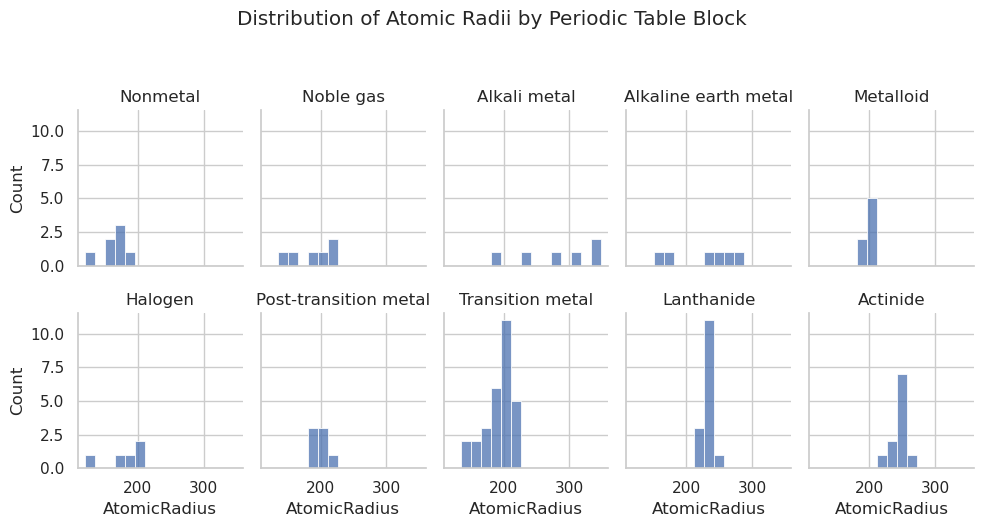

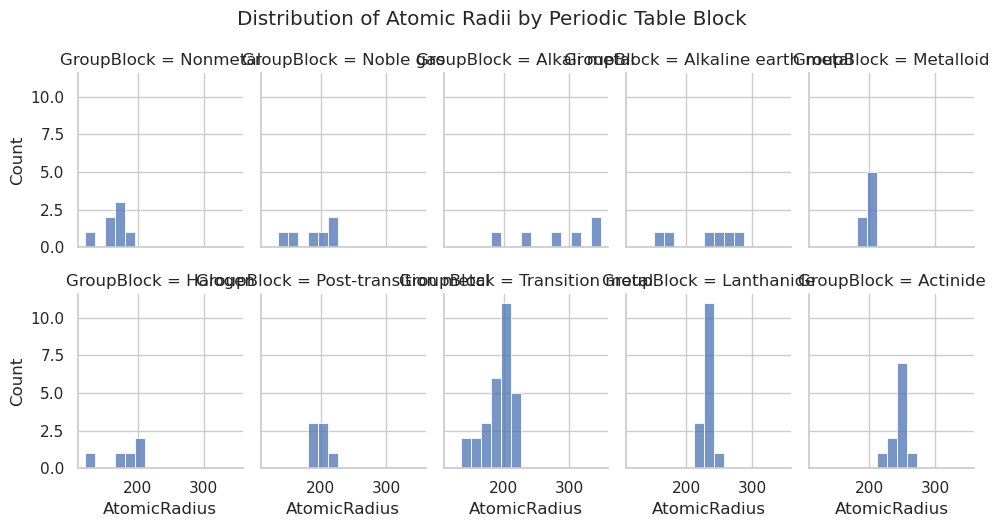

Distribution Grid (sns.displot())

Allows faceted histograms, it is essentially a combination of sns.histplot() + sns.FacetGrid()

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd
import os
base_data_dir = os.path.expanduser("~/data")  # Parent directory
pubchem_data_dir = os.path.join(base_data_dir, "pubchem_data")  # Subdirectory for PubChem
os.makedirs(pubchem_data_dir, exist_ok=True)  # Ensure directories exist
periodictable_csv_datapath = os.path.join(pubchem_data_dir, "PubChemElements_all.csv")
df = pd.read_csv(periodictable_csv_datapath, index_col=1)
print(df.head())
# Replace this with your actual DataFrame if needed
#df = pd.read_csv("~/data/pubchem_periodic_table.csv")  # or use your in-memory version

# Drop NaNs if necessary
df = df.dropna(subset=["AtomicRadius", "GroupBlock"])

# Create the displot
sns.displot(data=df,
            x="AtomicRadius",
            col="GroupBlock",       # faceted by block
            col_wrap=2,        # wrap into a 2-column grid
            bins=15,
            height=4,
            aspect=1.2)

plt.suptitle("Distribution of Atomic Radii by Periodic Table Block", y=1.05)
plt.show()

        AtomicNumber       Name  AtomicMass CPKHexColor ElectronConfiguration  \
Symbol
H                  1   Hydrogen    1.008000      FFFFFF                   1s1
He                 2     Helium    4.002600      D9FFFF                   1s2
Li                 3    Lithium    7.000000      CC80FF               [He]2s1
Be                 4  Beryllium    9.012183      C2FF00               [He]2s2
B                  5      Boron   10.810000      FFB5B5           [He]2s2 2p1

        Electronegativity  AtomicRadius  IonizationEnergy  ElectronAffinity  \
Symbol
H                    2.20         120.0            13.598             0.754
He                    NaN         140.0            24.587               NaN
Li                   0.98         182.0             5.392             0.618
Be                   1.57         153.0             9.323               NaN
B                    2.04         192.0             8.298             0.277

       OxidationStates StandardState  MeltingPoint  BoilingPoint   Density  \
Symbol
H               +1, -1           Gas         13.81         20.28  0.000090
He                   0           Gas          0.95          4.22  0.000179
Li                  +1         Solid        453.65       1615.00  0.534000
Be                  +2         Solid       1560.00       2744.00  1.850000
B                   +3         Solid       2348.00       4273.00  2.370000

                  GroupBlock YearDiscovered
Symbol
H                   Nonmetal           1766
He                 Noble gas           1868
Li              Alkali metal           1817
Be      Alkaline earth metal           1798
B                  Metalloid           1808

df = pd.read_csv(periodictable_csv_datapath, index_col=1)

# Replace this with your actual DataFrame if needed
#df = pd.read_csv("~/data/pubchem_periodic_table.csv")  # or use your in-memory version

# Drop NaNs if necessary
df = df.dropna(subset=["AtomicRadius", "GroupBlock"])

# Create the displot
sns.displot(data=df,
            x="AtomicRadius",
            col="GroupBlock",       # faceted by block
            col_wrap=5,        # wrap into a 2-column grid
            bins=15,
            height=2.5,
            aspect=0.8)

plt.suptitle("Distribution of Atomic Radii by Periodic Table Block", y=1.05)
plt.show()

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

# Load data
df = pd.read_csv(periodictable_csv_datapath, index_col=1)

# Drop missing values
df = df.dropna(subset=["AtomicRadius", "GroupBlock"])

# Create the displot and assign it to g
g = sns.displot(data=df,
                x="AtomicRadius",
                col="GroupBlock",       # Facet by GroupBlock
                col_wrap=5,
                bins=15,
                height=2.5,
                aspect=0.8)

# Remove "GroupBlock = " from titles
g.set_titles("{col_name}")

# Title and layout
plt.suptitle("Distribution of Atomic Radii by Periodic Table Block", y=1.05)
plt.tight_layout()
plt.show()

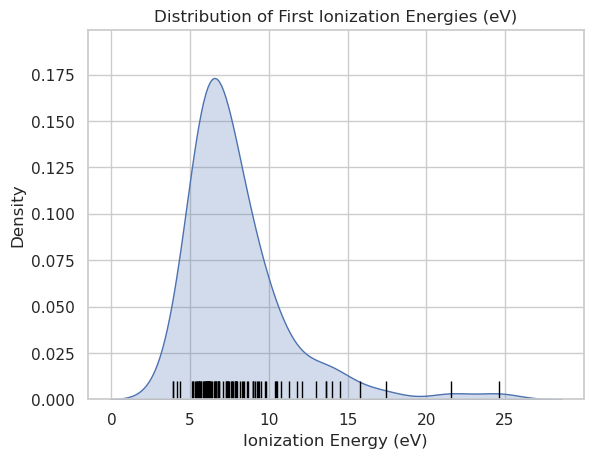

Rug Plot

Here we are plotting the KDE, which is a probablity density function with a rug plot under it $\( \int_{-\infty}^{\infty} f(x) \, dx = 1 \)$

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

# Load periodic table data
df = pd.read_csv(periodictable_csv_datapath, index_col=1)

# Clean data
df = df.dropna(subset=["IonizationEnergy"])

# Plot KDE with rug
sns.kdeplot(data=df, x="IonizationEnergy", fill=True)
sns.rugplot(data=df, x="IonizationEnergy", height=0.05, color="black")

# Labels
plt.title("Distribution of First Ionization Energies (eV)")
plt.xlabel("Ionization Energy (eV)")
plt.ylabel("Density")
plt.grid(True)
plt.show()

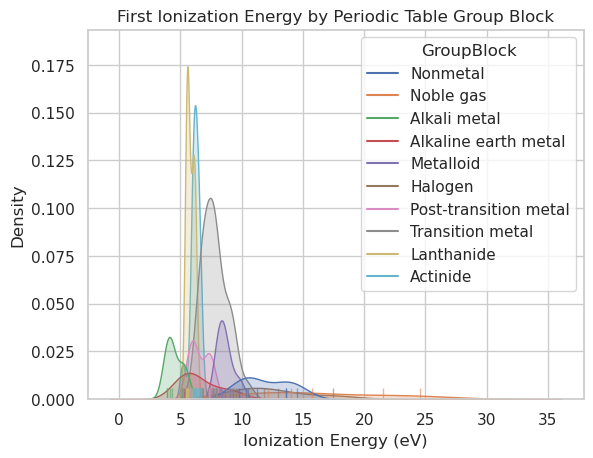

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

# Load and clean the data
df = pd.read_csv(periodictable_csv_datapath, index_col=1)
df = df.dropna(subset=["IonizationEnergy", "GroupBlock"])

# Plot KDE and rug, grouped by GroupBlock
sns.kdeplot(data=df, x="IonizationEnergy", hue="GroupBlock", fill=True)
sns.rugplot(data=df, x="IonizationEnergy", hue="GroupBlock", height=0.03, alpha=0.6)

# Labels
plt.title("First Ionization Energy by Periodic Table Group Block")
plt.xlabel("Ionization Energy (eV)")
plt.ylabel("Density")
plt.grid(True)
plt.show()

Acknowledgements

This content was developed with assistance from Perplexity AI and Chat GPT. Multiple queries were made during the Fall 2024 and the Spring 2025.
